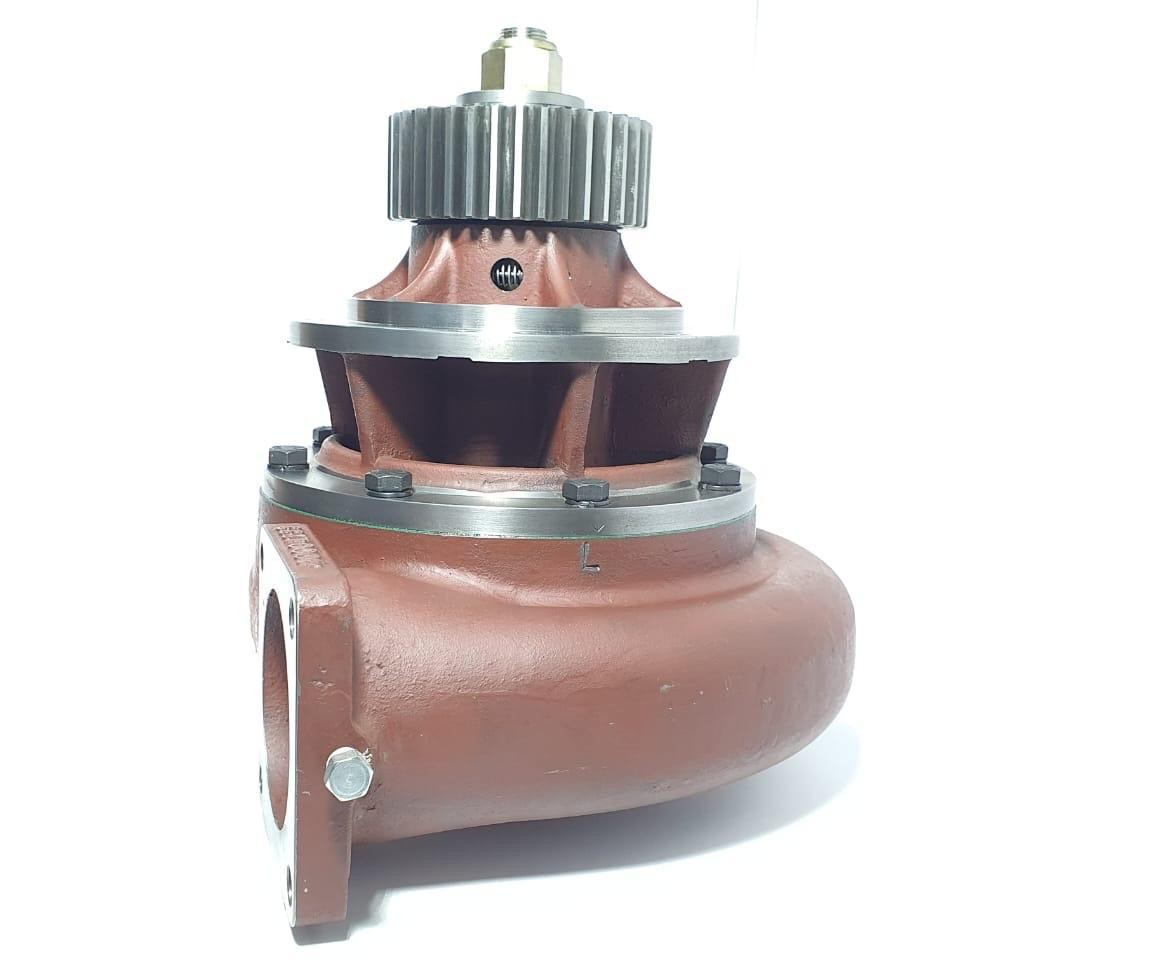

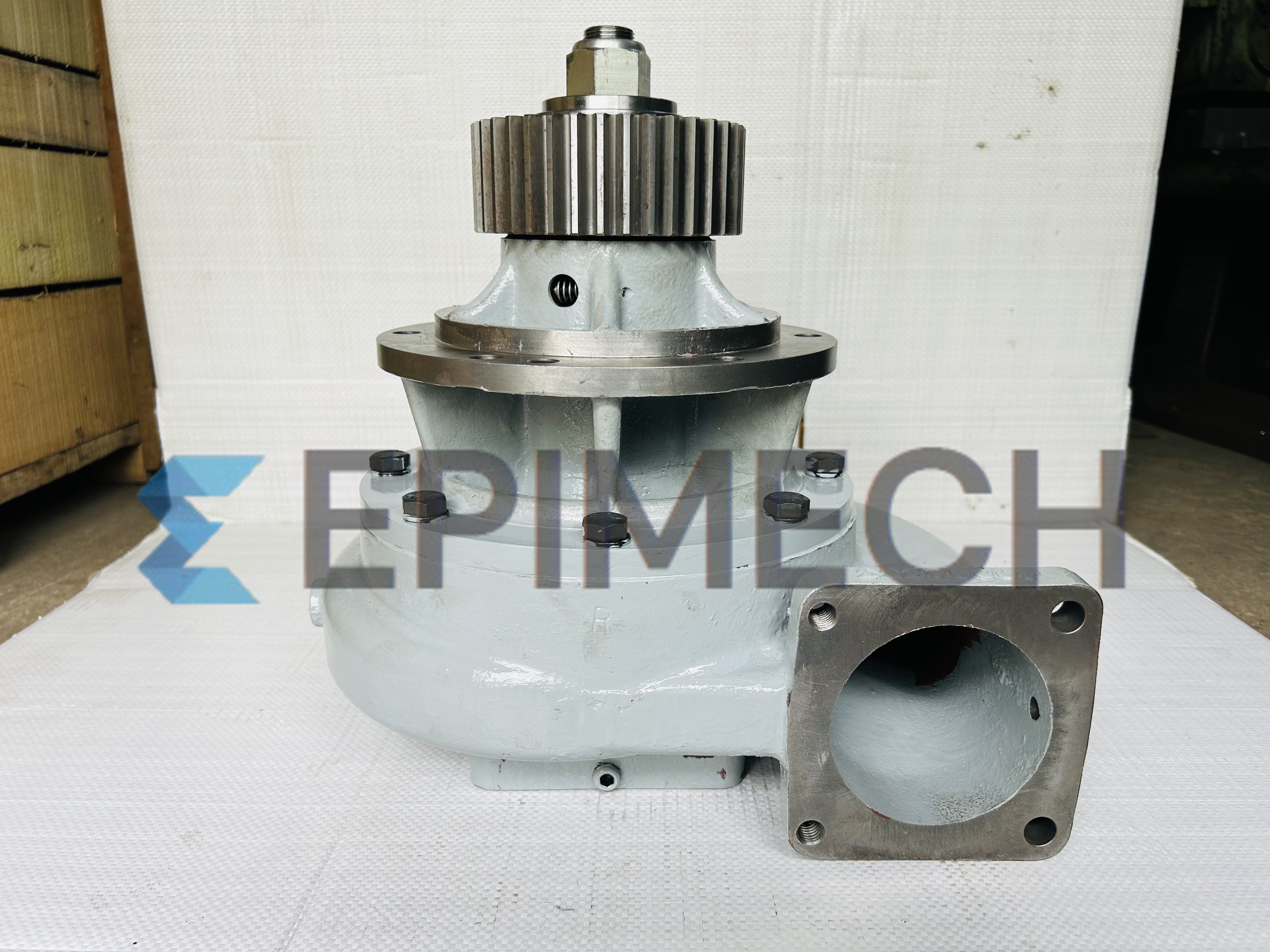

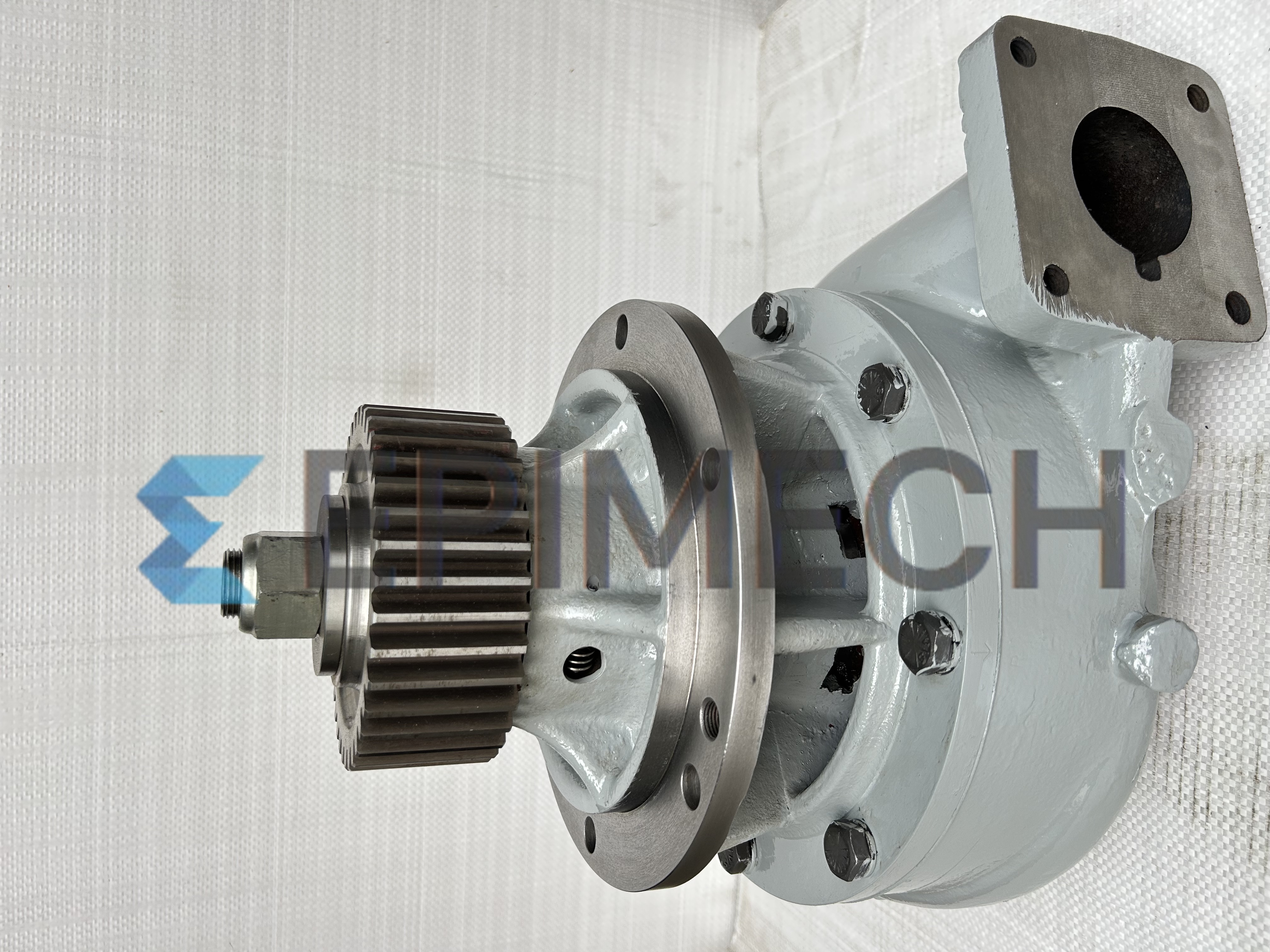

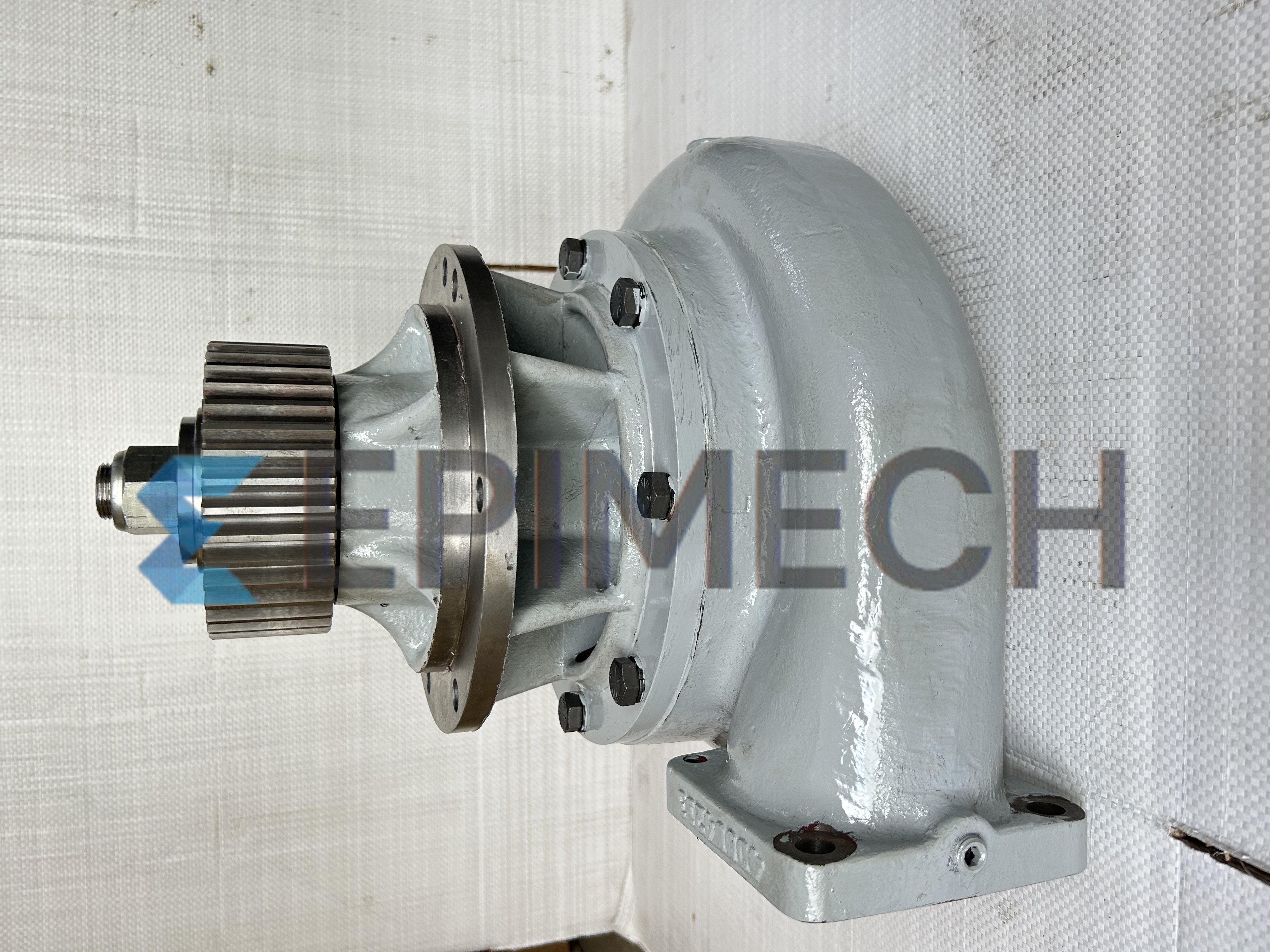

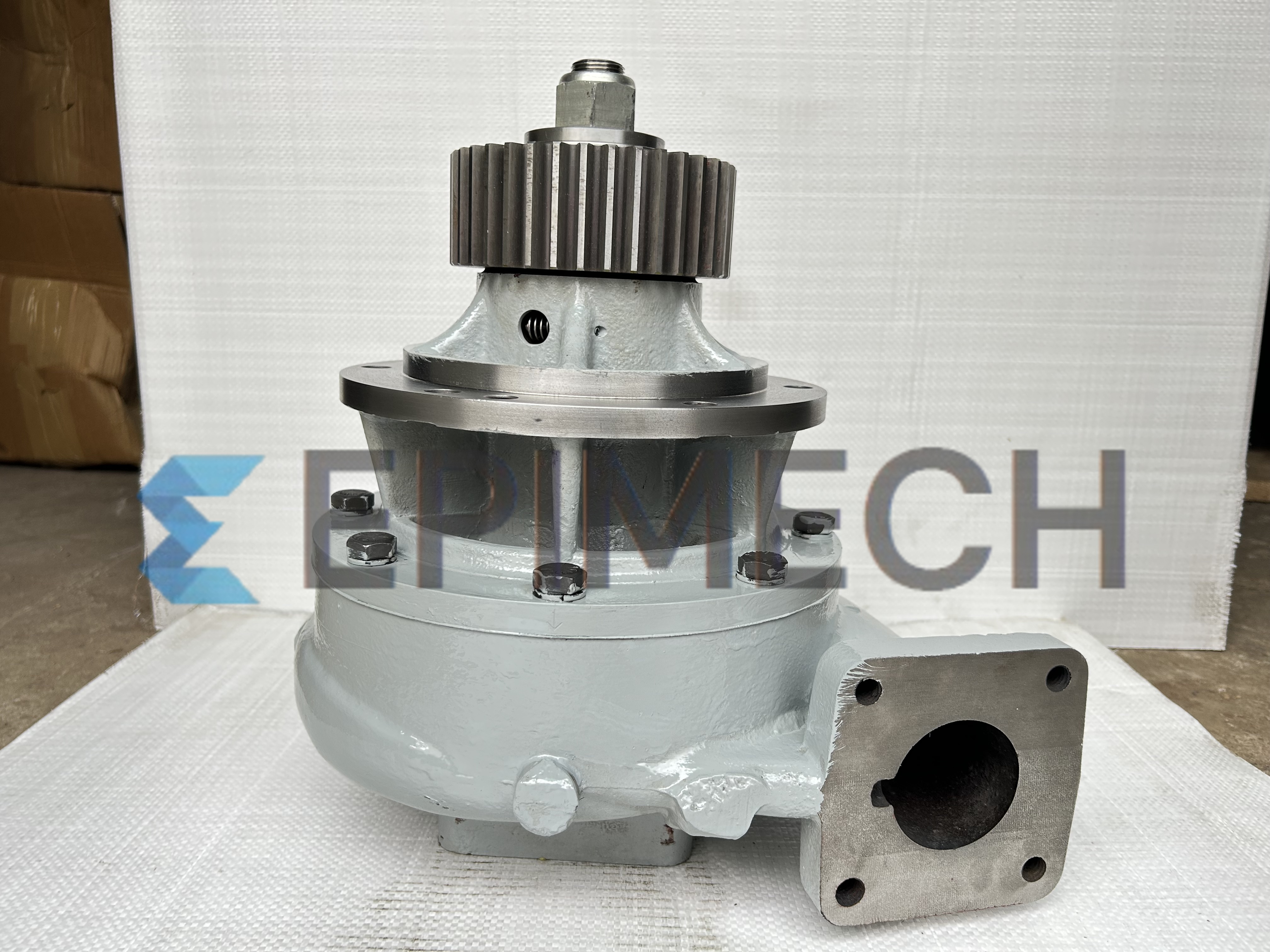

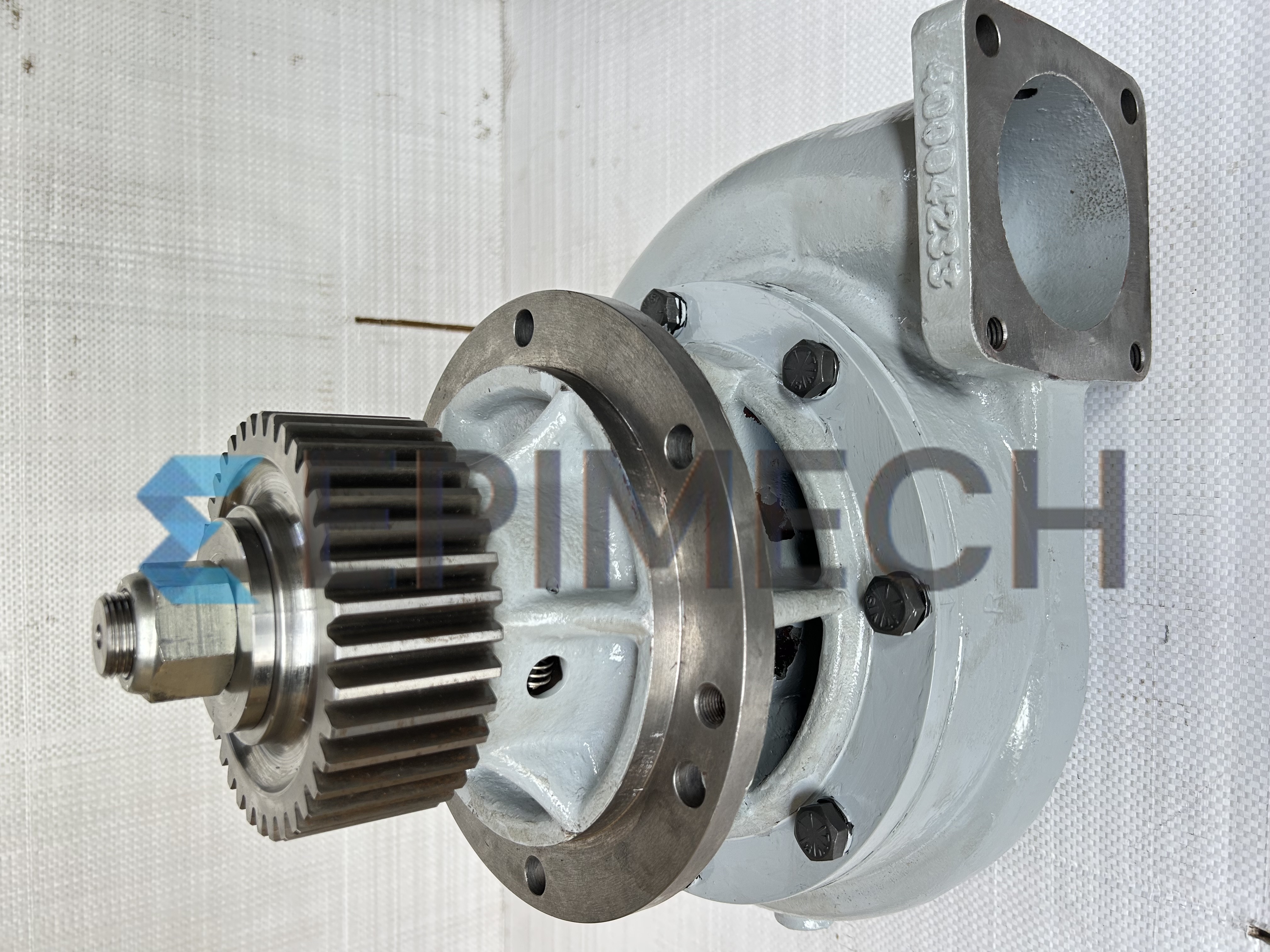

EMD Water Pump
High-quality aftermarket OEM standard locomotive & marine engine parts for EMD 645 & EMD 710 engines.
Premium Quality Parts
EMD Water Pump Manufacturer - Precision Engineered for Performance As a trusted manufacturer of EMD water pumps, we specialize in delivering high-performance solutions for EMD 645 and EMD 710 series locomotive and marine engines. Our water pumps are designed and built to meet stringent OEM standards, ensuring reliable performance, ease of installation, and long service life in the most demanding applications.
We use premium-grade raw materials and advanced CNC machinery to ensure every water pump we produce meets precise engineering tolerances. With a focus on durability and operational efficiency, our products undergo rigorous quality control and testing protocols, including hydraulic pressure testing, dimensional checks, and material integrity analysis.
Why Choose Our EMD Water Pumps?
OEM-Grade Quality: Manufactured to meet or exceed original specifications for EMD 645 and 710 engines.
Advanced Manufacturing: Fully machined components produced using state-of-the-art CNC technology.
Tested for Reliability: Each unit is thoroughly tested for performance, fit, and endurance.
Technical Diagram

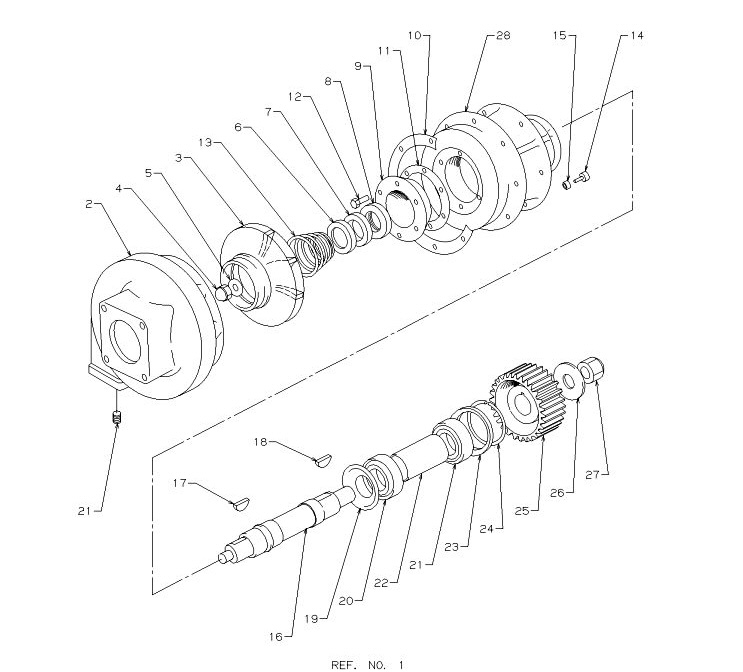

Exploded Diagram - Assembly 24: Water Pump
Parts Reference
| Asm-Ref No. | Part Number | Qty. | Description |
|---|---|---|---|
| 1-24 | 40089541 | 1 | PUMP ASSEMBLY.. Water cooling - Right bank |
| 2 | 40004233 | 1 | HOUSING ASSEMBLY.. Water pump impeller |
| 3 | 8248248 | 1 | IMPELLER.. Water pump |
| 4 | 8028724 | 1 | NUT.. Hex lock 5/8-18 |
| 5 | 8028730 | 1 | WASHER.. Flat 5/8 |
| 6 | 9529473 | 1 | RETAINER.. Water pump seal |
| 7 | 9526863 | 1 | SEAL.. Water pump - Outer |
| 8 | 9529199 | 1 | SEAL.. Water pump - Inner |
| 9 | 8052224 | 1 | BUSHING.. Water pump stationary |
| 10 | 8209776 | 1 | GASKET.. Water pump housing to support |
| 11 | 9570647 | 1 | GASKET.. Water pump support to bushing |
| 12 | 9543484 | 2 | BOLT.. Hex head 5/16-18 x 7/8 - Nyloc |
| 13 | 8055346 | 1 | SPRING.. Water pump seal retainer |
| 14 | 179884 | 8 | BOLT.. Hex head 1/2-13 x 1-3/8 |
| 15 | 103223 | 1 | WASHER.. Lock 1/2 |
| 16 | 40089902 | 1 | SHAFT.. Water pump drive |
| 17 | 103909 | 1 | KEY.. Woodruff - Shaft to impeller |
| 18 | 108627 | 1 | KEY.. Woodruff - Shaft to drive gear |
| 19 | 40089901 | 1 | SLINGER.. Water pump |
| 20 | 40089906 | 2 | BEARING.. Ball - Water pump impeller end |
| 21 | 8348618 | 3 | PLUG.. Pipe |
| 22 | 40089903 | 1 | SPACER.. Bearing |
| 23 | 8042973 | 1 | RING.. Retaining |
| 24 | 8370886 | 1 | RING.. Snap |
| 25 | 8042976 | 1 | GEAR.. Water pump drive |
| 26 | 8042977 | 1 | WASHER.. Special - 2-5/8 O.D. x 1-1/32 I.D. x 1/4 inch thick |
| 27 | 8032724 | 1 | NUT.. Hex lock 1-14 |
| 28 | 40089904 | 1 | SUPPORT.. Water pump housing |
| 29 | 9312705 | 1 | SPRING.. Coil (not shown) |
| 30 | 273703 | 1 | PIN.. Spring 1/8 x 1-3/8 (not shown) |
| 31 | 145372 | 3 | SCREW.. Drive - Nameplate mounting (not shown) |
| 32 | REF | 1 | NAMEPLATE.. Water pump (not sold by EMD) |
| 33 | 9580758 | 1 | KIT.. Water pump seal - Contains Ref. Nos. 6 thru 12 (not shown) |
| 34 | 8366747 | AR | COMPOUND.. Water pump sealing - 12 ounce tube - Applied to bearing bore of Ref. No. 28 - For sealing outer race of Ref. No. 20 (not shown) |
